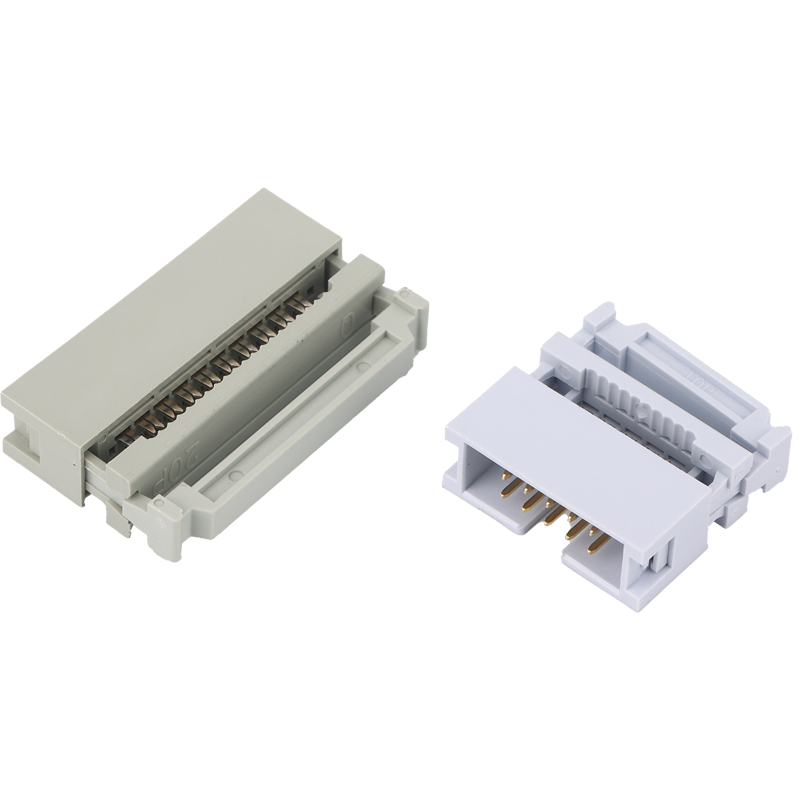

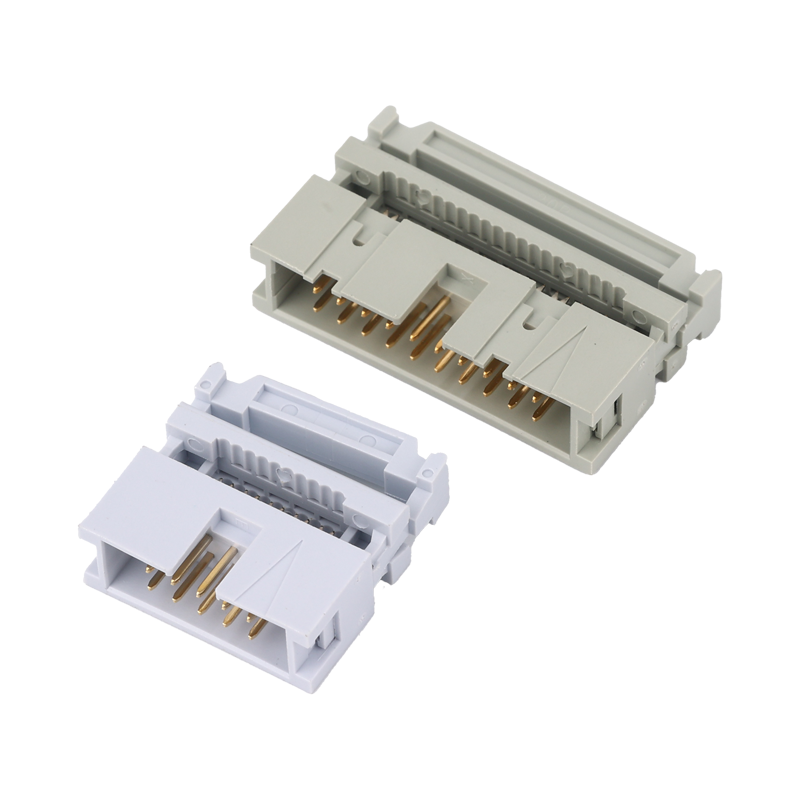

2.54mm IDC box head three piece connector

Item Description Application Primarily used for internal device connections Suitable Industries Electronics, Industrial PCs, Communication Systems, Aftermarket Components Mounting Type SMT / Straight / Right Angle / J-Type / U-Type Rows of Plastic Single Row / Double Row Rated Current 3A per pin Operating Temperature -40°C to +105°C Terminal Material C2680; C5191 Insulator Material LCP (UL94V-0), Black Processing Temperature 230°C to 260°C Contact Resistance Max 20mΩ Contact Plating Gold Flash / Tin Plating Base Nickel Layer ≥50μ" Number of Contacts 6–80 PINs Certifications IATF16949, ISO9001, ISO14000 RoHS Compliance Yes Materials PBT, PA46, PA6T, PA9T, LCP Packaging Standard: Plastic Tray + Carton (customizable on request) Service Type ODM & OEM services available; flexible color customization supported   The 2.54mm IDC Box Head Three Piece Connector is crafted from high-quality materials and precision manufacturing techniques, designed…
