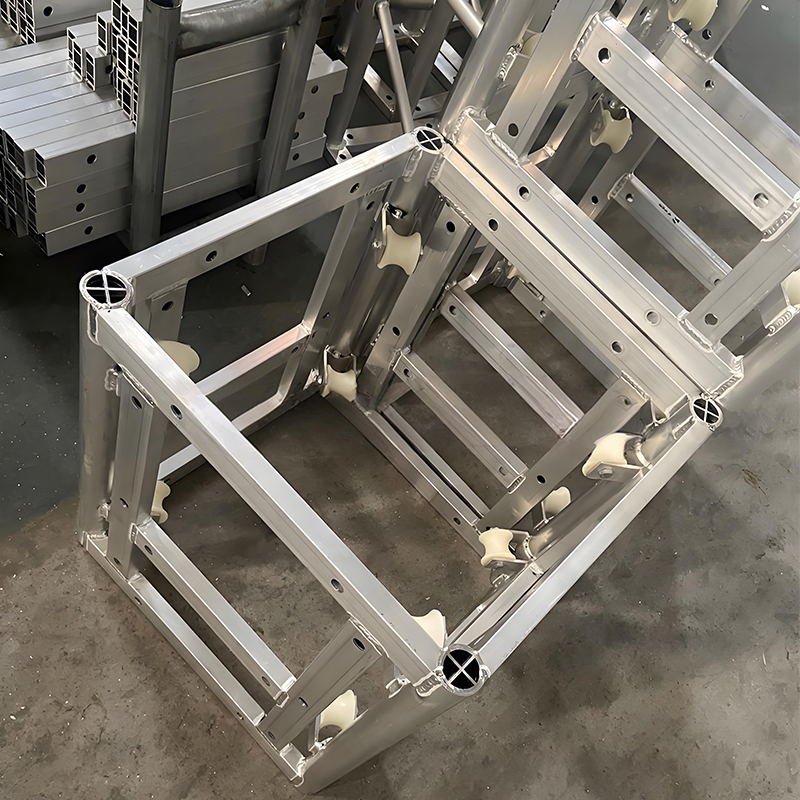

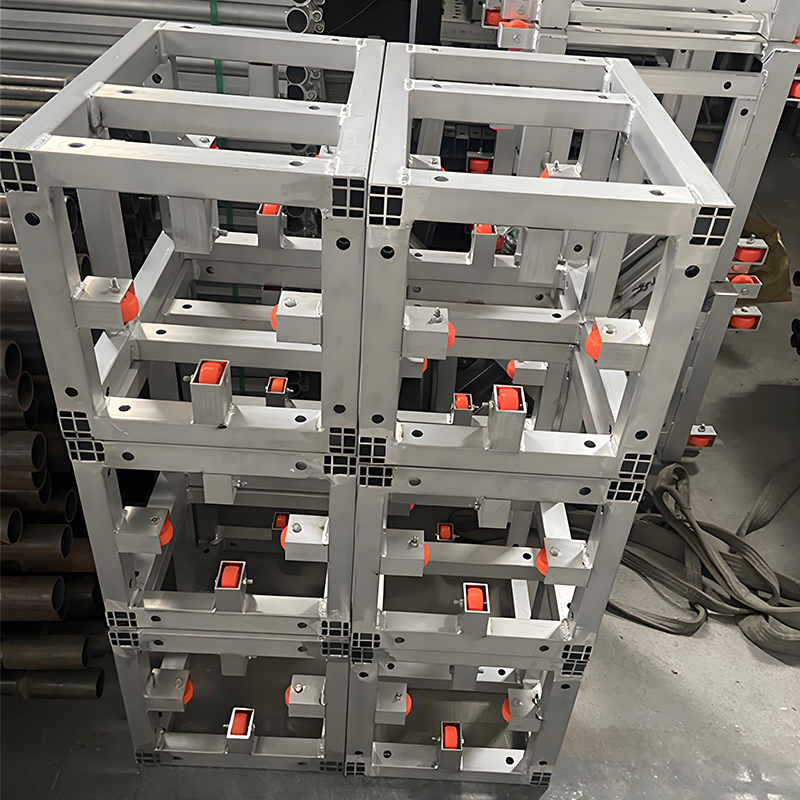

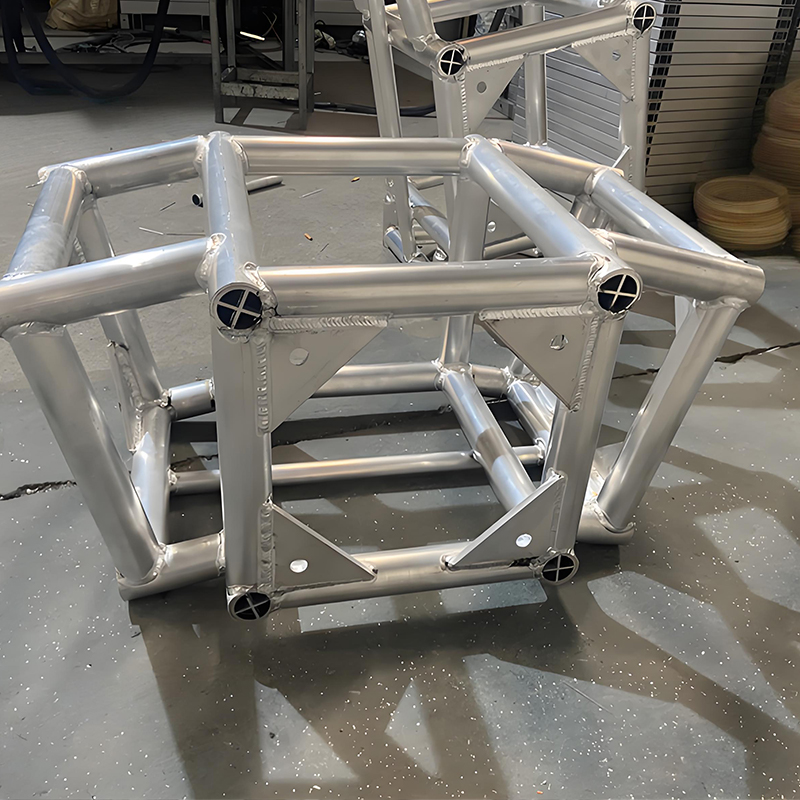

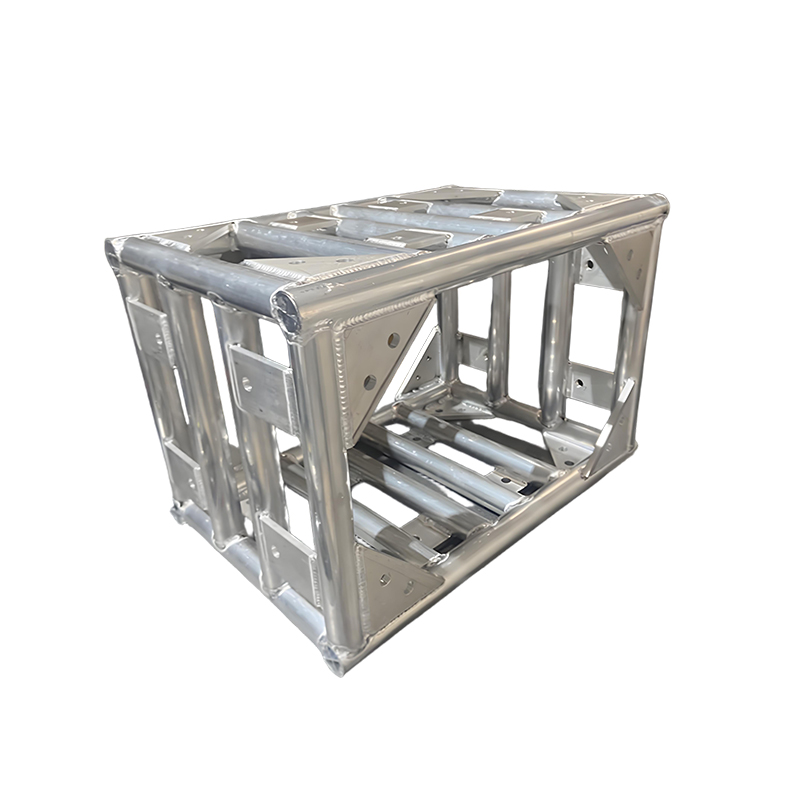

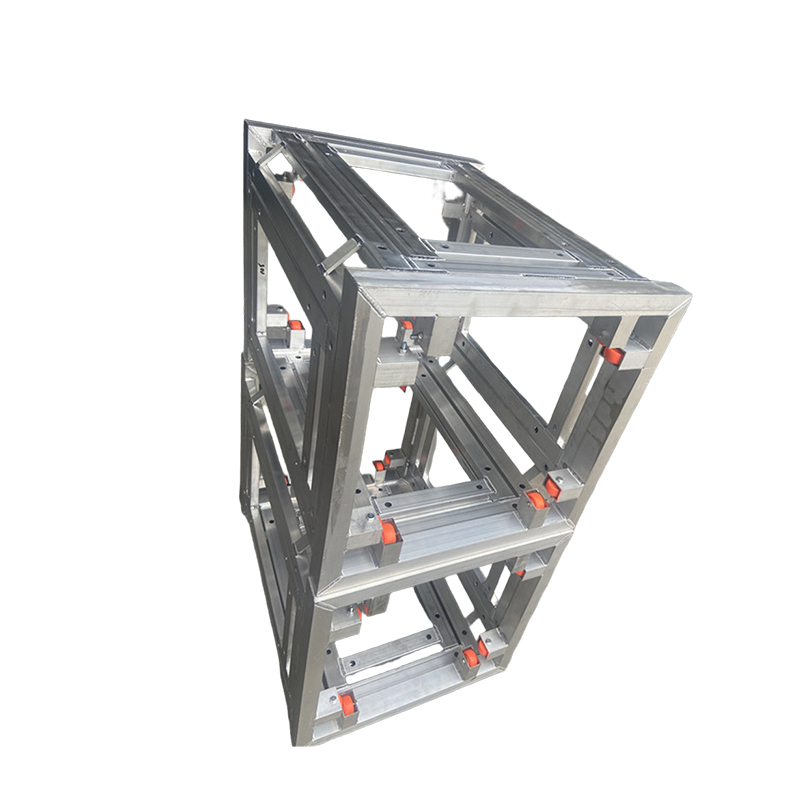

Custom Shaped Truss Design

​Custom Special-Shaped Trusses​​ ​​I. Specifications​​ •Cross-Section Dimensions​​: Round Tube Truss Options include 200×200 mm, 300×300 mm, 400×400 mm, 520×760 mm, and other standard frames. Custom circular, arc, diamond, star, or parametrically designed free-form shapes are also available. •Single-Segment Lengths​​: Standard stock lengths of 1 m, 2 m, 3 m, and 4 m. Round Tube Truss System Custom longer or shorter segments can be cut to order. •​​Main Tube Specifications​​: Sizes range from φ50×2–5 mm, φ30×2 mm, to φ25×2 mm, Steel Round Tube Truss with varying wall thicknesses to accommodate different spans and load capacities (single-point support from 200 kg to 2 tons). •Connection Methods​​: Lightweight Round Tube Truss Pin-type, bolted, or hybrid connections. On-site welding is unnecessary, and assembly/disassembly can be completed in as little as 10 minutes per segment. ​​II. Advantages​​ •Design Flexibility​​: Modular Round Tube Truss Capable of forming any spatial curve in…
