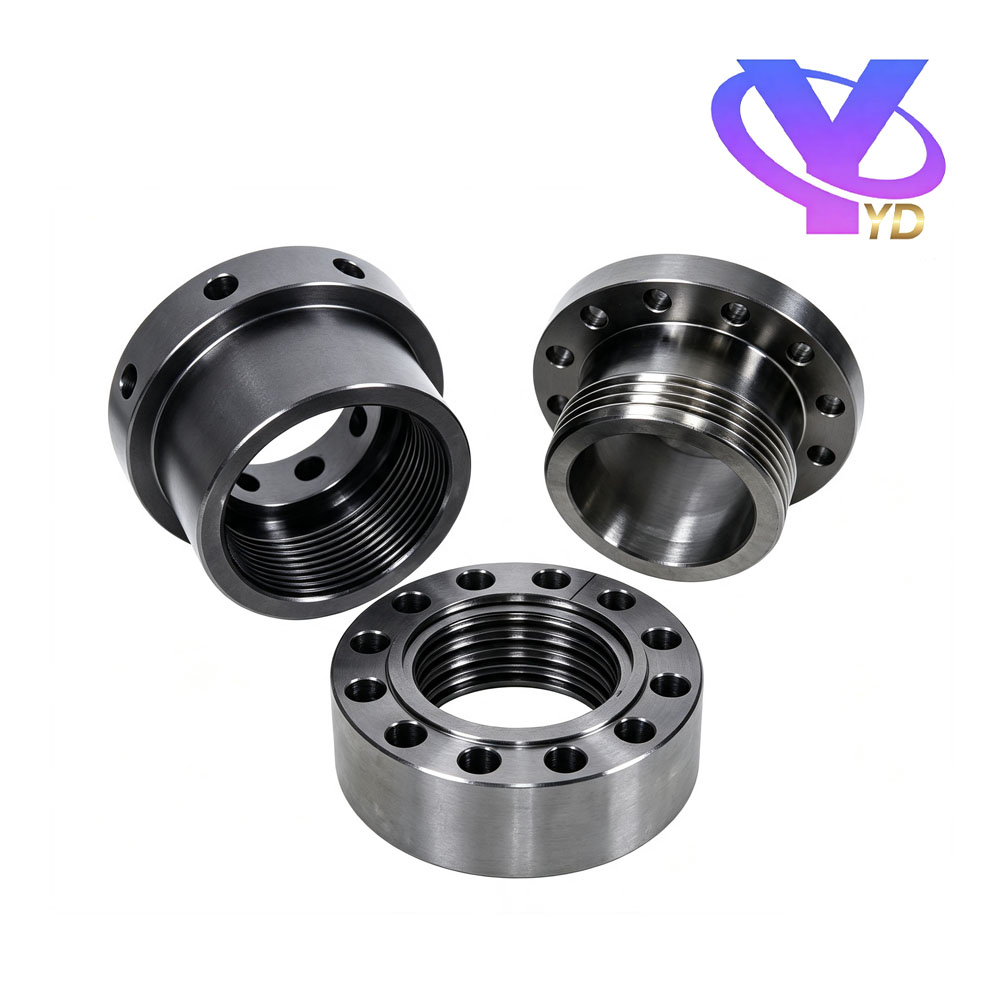

Cylinder Liner Gland Mud Pump Fluid End Fitting

Cylinder liner gland belongs to high-quality Petroleum machinery accessories, it is an indispensable rear locking fitting specially developed for mud pump hydraulic system, widely used in oil field exploitation construction. It is installed at the rear end of fluid cylinder, firmly locked onto the cylinder flange, and compresses cylinder liner tightly through the end face. As core Oil drilling equipment parts, it can effectively avoid liner displacement and mud leakage under long-term high-pressure circulation work, and maintain the stable operation matched with the whole set of Mud pump power end. All workpiece outlines, internal threads and mounting holes are finished via strict CNC precision machining, the tolerance is precisely controlled to guarantee excellent assembly accuracy, compression resistance and deformation resistance. Two mature production materials are optional: forged 35CrMo steel and quenched & tempered ZG35CrMo cast steel, both can reach stable hardness fo…
