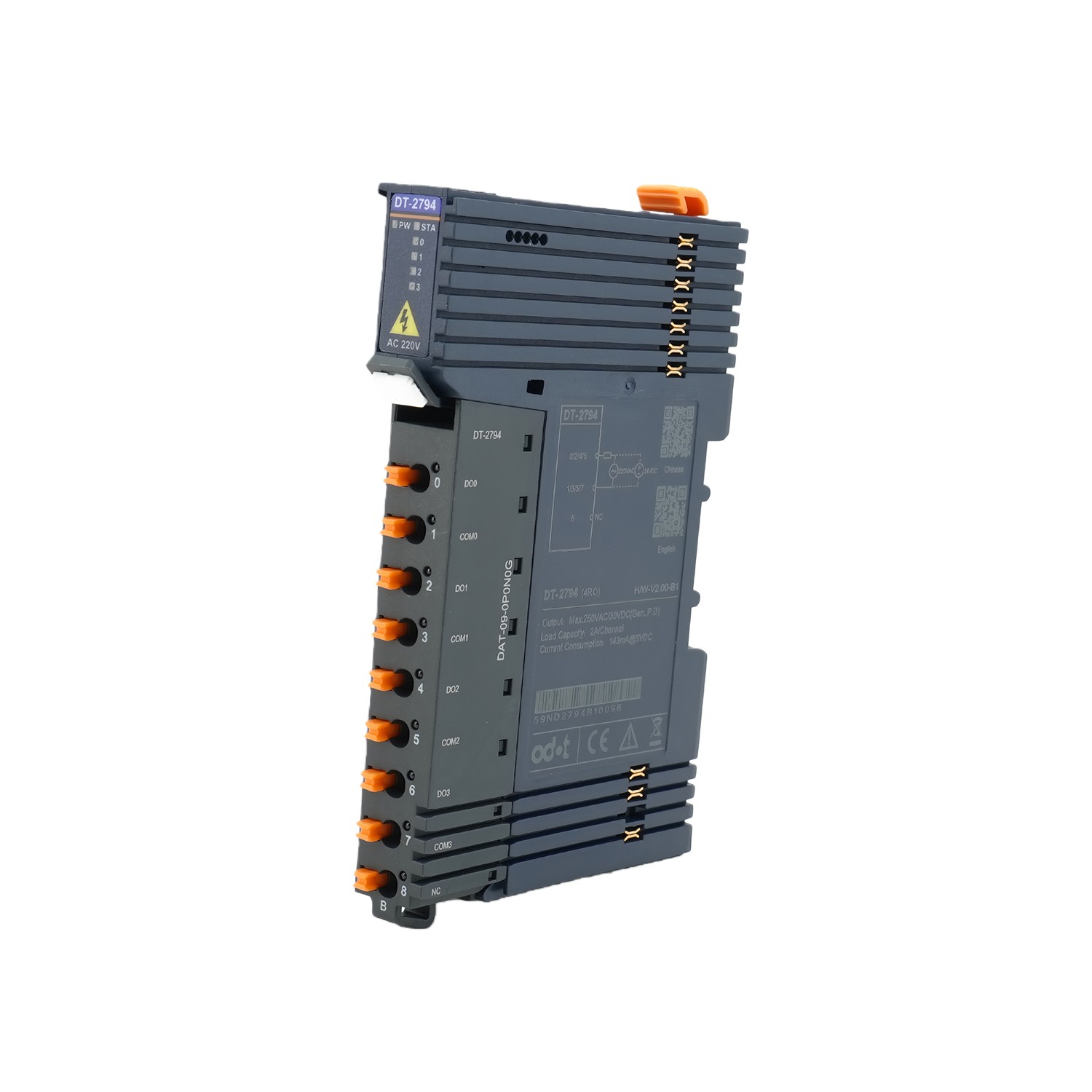

DT 2794 Relay Output Module 4 Channels

DT-2794 Relay Output Module 4 Channels 4 Channel Relay Output, 2A@250VAC/30VDC (Resistive Load), 1A@250VAC/30VDC(Inductive Load) Module Feature 1.   4 Channels relay normally on output;                     2.  4 Channels LED indicators; 3.   Low on resistance (≤100mΩ) ;                                4.  With isolation between channels; 5.   Resistive and inductive loads can be connected;    6.  Module high speed redundant backplane bus with pluggable terminal blocks. Technical Parameters General Parameters Power Consumption 143mA@5VDC Field Powe 19.2~28.8VDC (Nominal: 24VDC) Wirring Diameter Min.0.2mm²(AWG24)  Max.1.5mm²(AWG16) Terminal Pluggable Support Backplane Bus Double bus redundancy Installation 35mm DIN-Rail Dimension 119*14*80mm Product Certification CE Certification Output Parameter   Channel Number 4 channels output Indicator 4 channels indicator Output Type Relay output Load CapacityOutput Voltage Resistive load: 2A Inductive load: 1A Lig…
