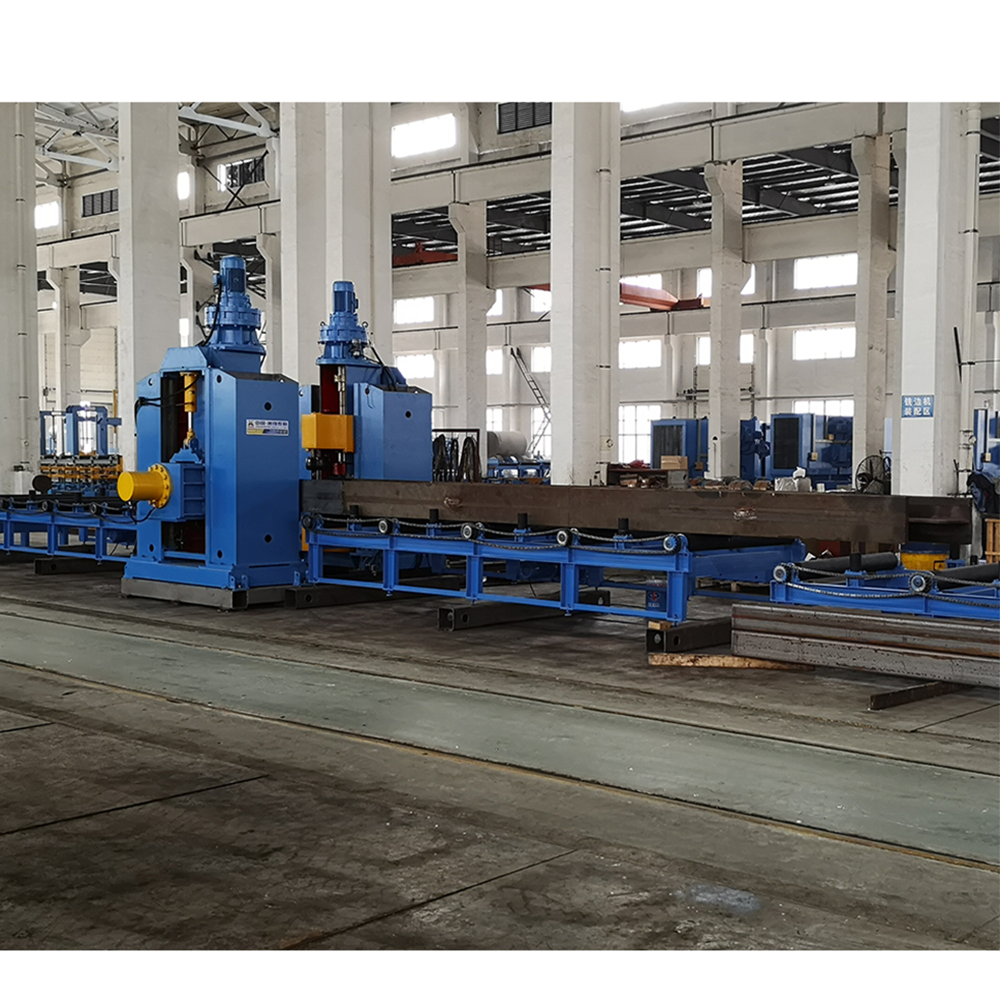

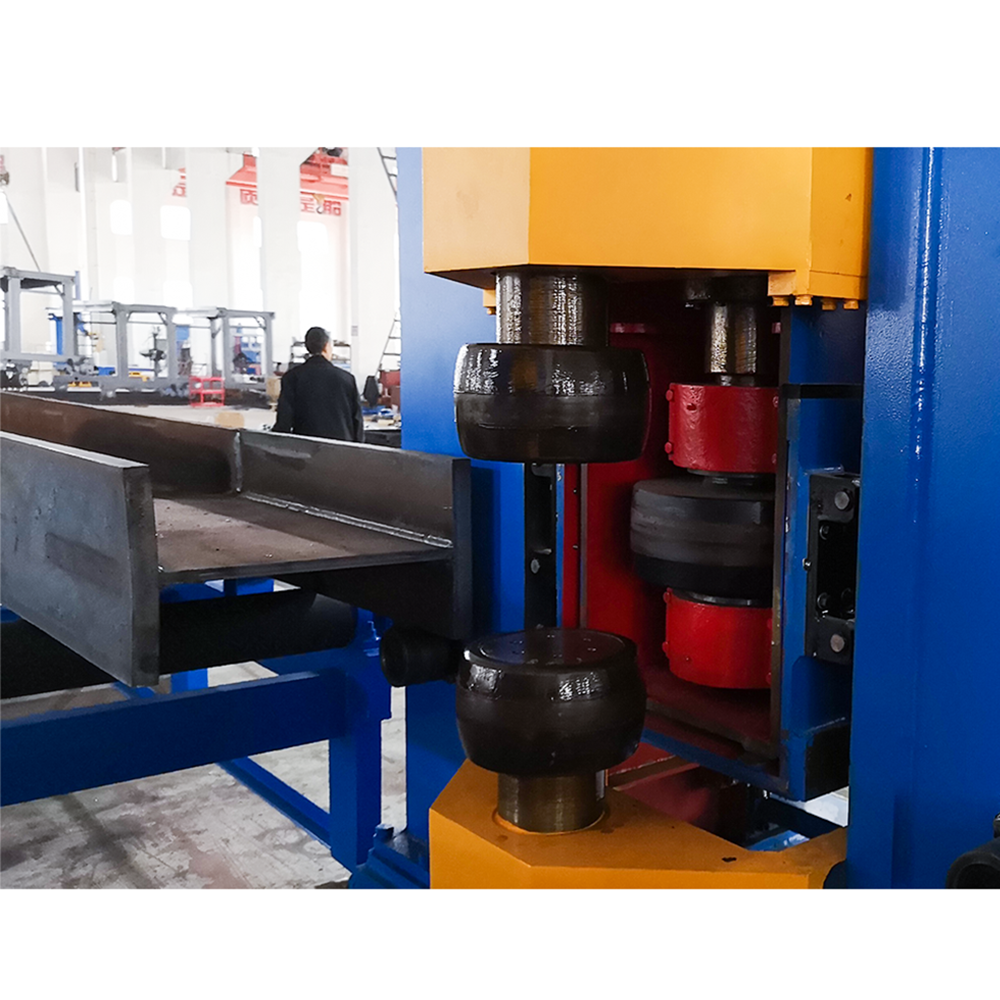

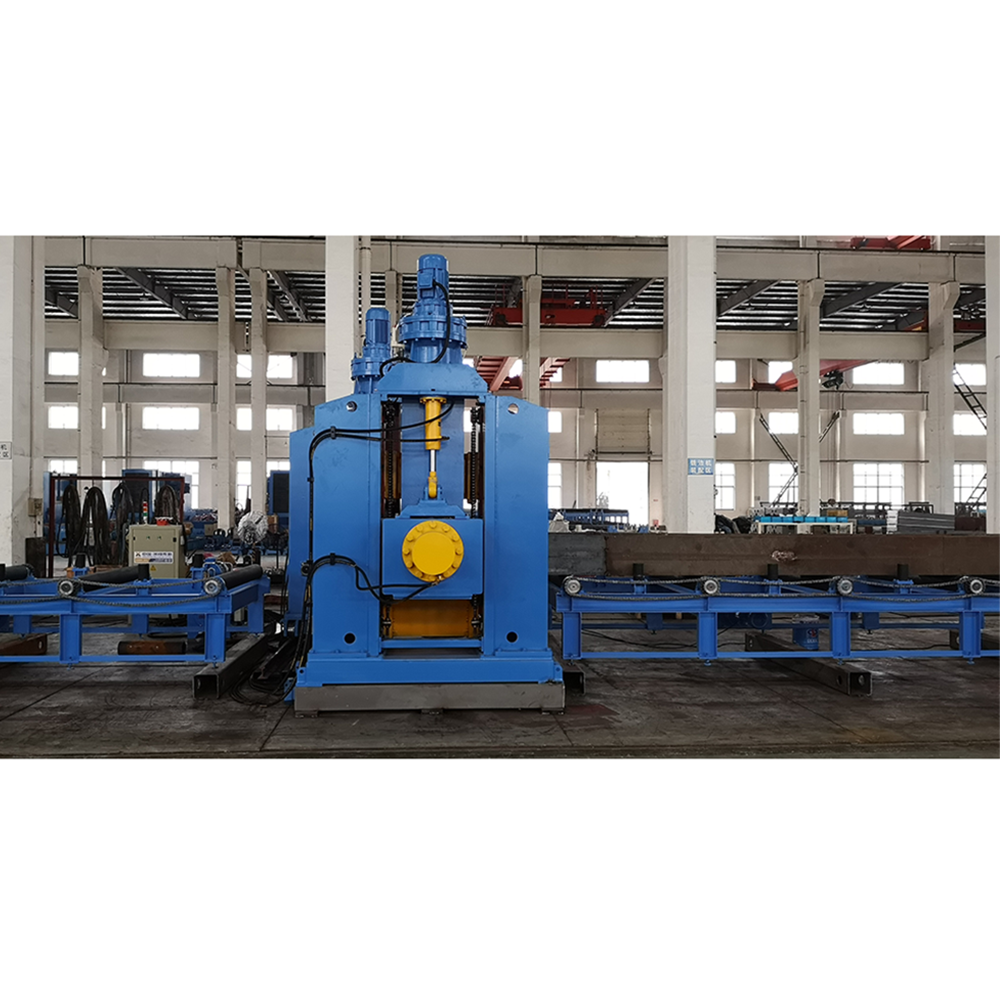

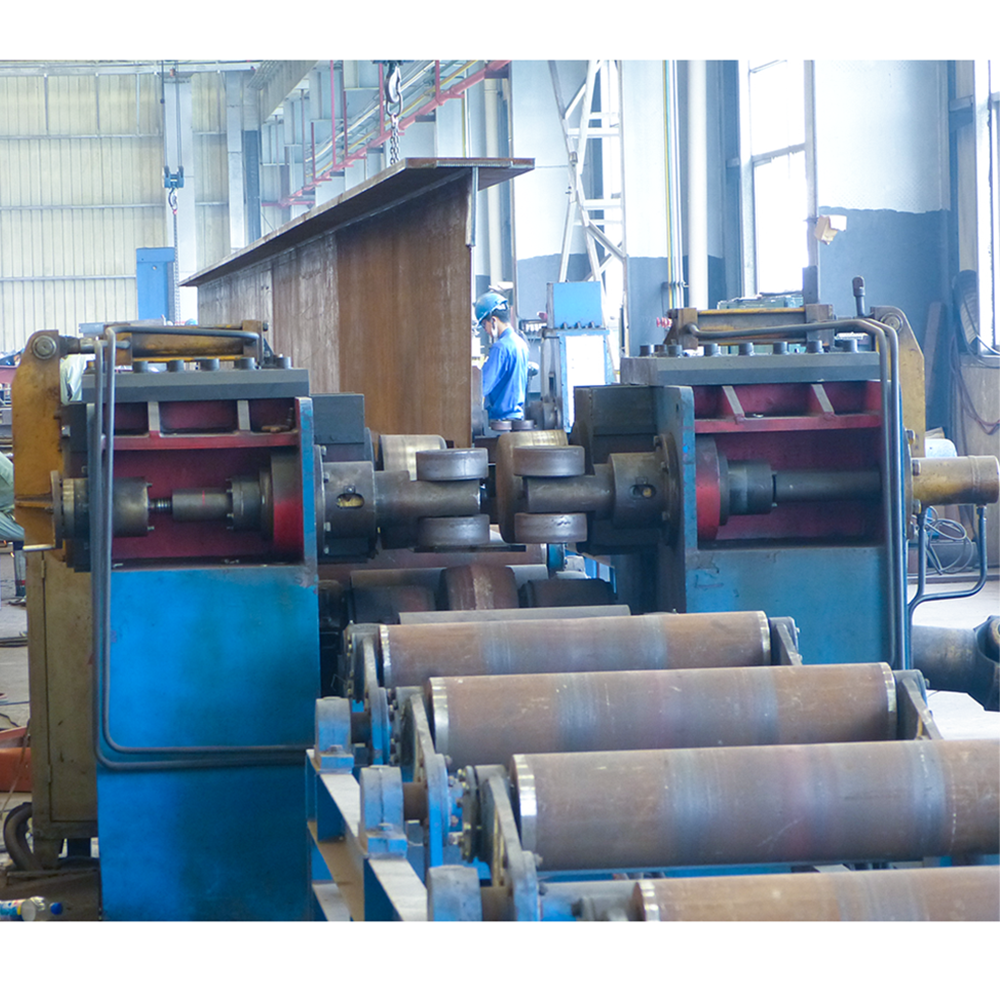

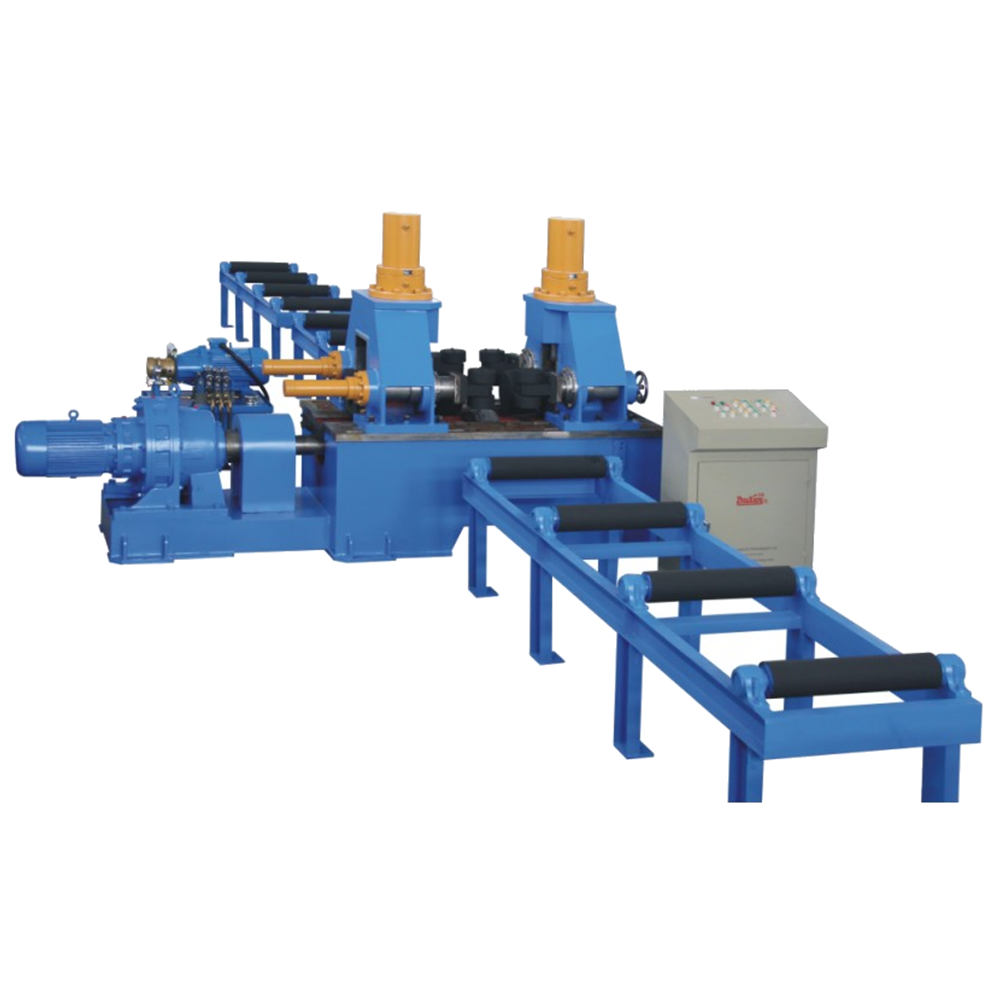

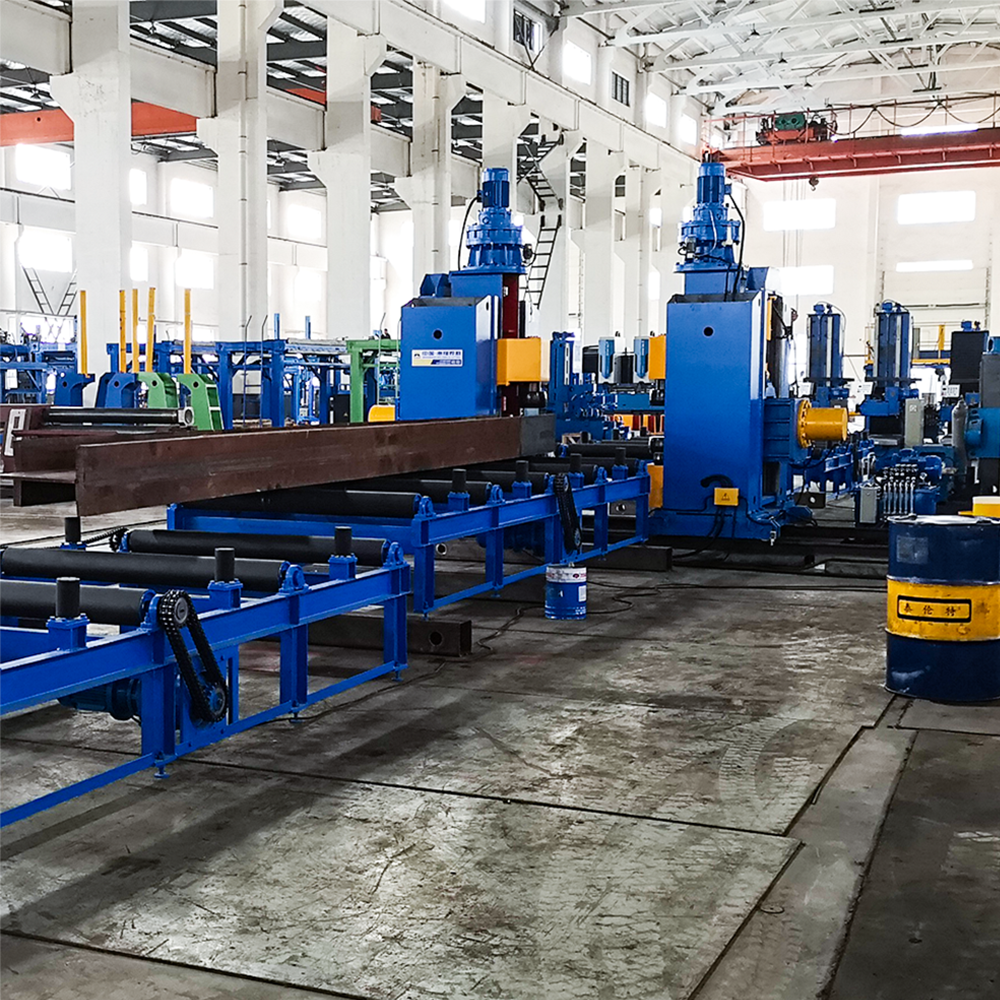

H Beam Hydraulic Flange Sheet Metal Straightening Machine 

Model YJZ60B YJZ80B YJZ80C YJZ60C Flange width 200~800mm 200~1000mm 200~1000mm 200-800mm Flange thickness ≤60mm ≤80mm ≤60mm ≤40mm Minimum web height 350mm 350mm 200mm 380mm Material of plate Q345(16Mn) Q345(16Mn) Q235-A Q345(16Mn) Straightening speed 6.15m/min 6.1m/min 6.3m/min 9.8m/min Total Power 37KW 22KW 27.5KW 20.5KW Above are our standard model, it can be designed and manufactured according to customer’s request. Product Advantages 1.The mainframe is integral fr…
