High performance push-wire connector

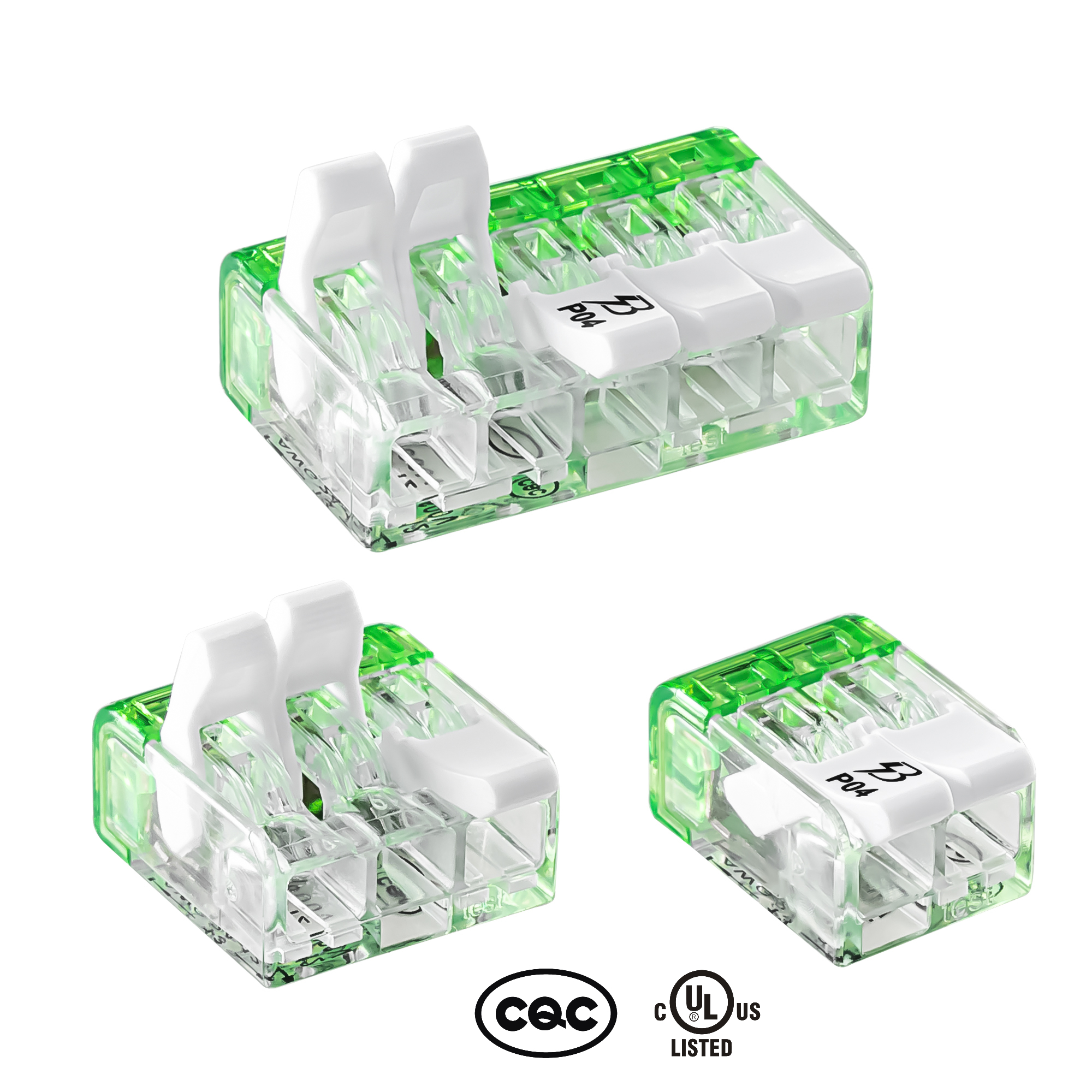

The BELEKS P04 series compact splicing connector, also known as push in connector, is a reusable, fast push-in cable connector equipped with a lever nut, making it a convenient and efficient choice for a diverse range of electrical applications. Its design allows for quick and seamless wire connections, streamlining the installation process. Additionally, its reusable nature ensures cost-effectiveness and longevity, making it a reliable solution for maintenance and repairs in various electrical systems. Item No. P04-3P Electrical Data   IEC/EN UL Rated Voltage (V) 450 600 Rated Current (A) 32   Ambient Temperature Polycarbonate T85 90℃ Connection Data   IEC/EN UL Cross Section Solid conductor 0.2-4.0mm² AWG 12-24 Stranded conductor 0.2-4.0mm² AWG 12-24 Flexible conductor 0.2-4.0mm² AWG 12-24 Strip length (mm) 13 Means of connection push in Rewirable √ Number of terminals single Number of connection points 3 Materials Insulation Materials Designat…
