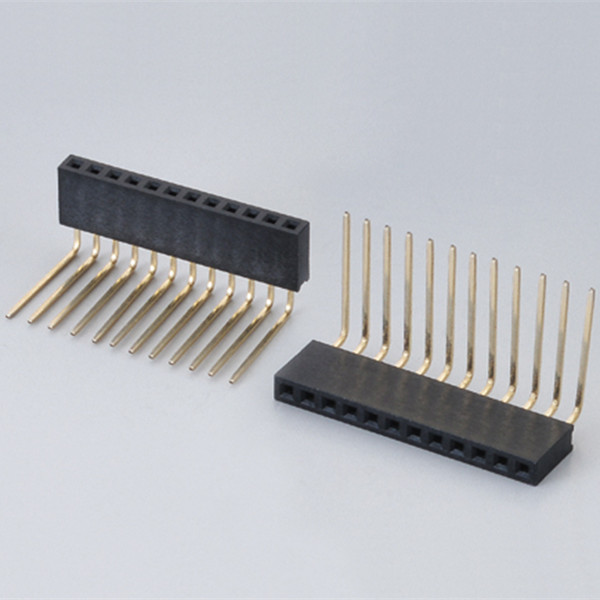

Motherboards Efficient Electrical Connections Connectors 2.0mm Pitch Female Connector 2.0x6.3 Single Row 90° Specification Description: Model No.: Pitch 2.0mm Nematic 2.0x6.3 Single row 90° Plastic height: 6.3mm pin position: 1*2P～1*40P Material: Terminal material: brass Plating of terminal: gold plated on nickel base Plastic material: PBT,UL94V-0/PA6T,UL94V-0 Plastic colour: black    Electrical Characteristics: Rated current: 2.0 Amp Contact impedance: 20mΩ Max Insulation Resistance: 3000MΩ Min @ 500V DC Withstanding Voltage: 500V AC/1min  Mechanical Characteristics: Operating temperature: -40°C to +105°C Welding temperature (PBT material): 230+/-5°C, time: 5+/-0.5 sec. Soldering temperature (PA6T material): 260+/-5°C, time: 5+/-0.5 sec. Solderability (PBT material): more than 90% of the soldered area @ Temperature: 230+/-5°C, Time: 3+/-0.5sec Tin-on-tin (PA6T): 90% tin-on-tin @ Temp: 230+/-5°C, Time: 3+/-0.5 sec. Motherboards serve as…
