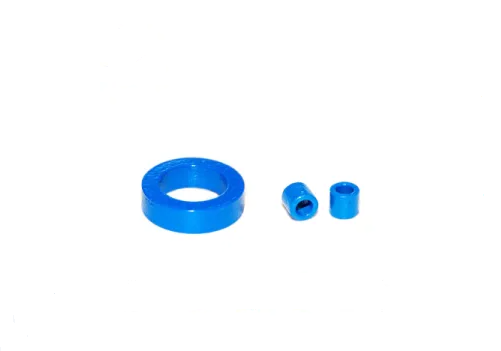

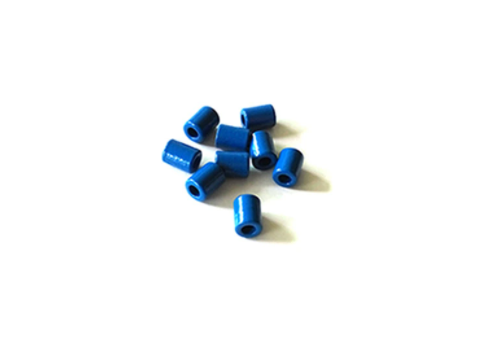

Popular Soft Iron Core 

Versatile magnetic core         Our company’s best magnetic ring has a very large inductance when the current is zero, which can effectively block the reverse reset current generated by the diode. This material can be saturated at a very small current that can be widely used to the switching power,frequency converter and so on. The comparsion diagram of having a peak suppressor and not Comparison of three low-cost iron core Item Nano high saturation iron core Permalloy iron core Silicon steel core Magnetic saturation induction intensity Bs(T) 1.25 0.76 2.03 Curie temperature Tc(℃） 570 400 740 Density ρ(g/cm3) 7.2 8.85 7.65 Stacking fac…
