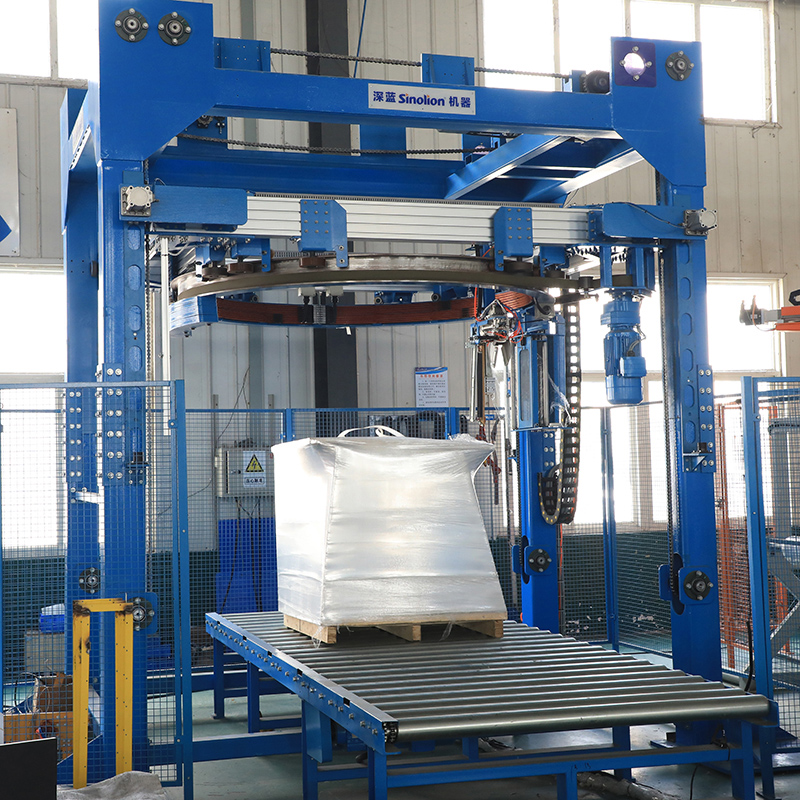

Ring stretch wrapping machine

High speed orbital ring wrapping machine for pallet load with regular palletising pattern. Film wrap starts and ends at any height of pallet. Recommended solution for  pallet wrapping for automatic warehouse storage purpose. Orbital ring rotates high speed up to 50RPM. Double film carriage available for wrapping more layers. Pallet load size: W1200mm*L1200mm*H2000mm Packaging speed: 60-80 pallets/hour Rotary ring drive speed: n=50rpm (frequency control, with brake)Rotary ring guide direction device Film carriage partsInstall a height sensor on the film carriage to automatically detect the height of the load.Motorised pre-stretch ratio up to 1:3.5 (250%), and the film delivery feed speed is analog adjustable.Film carriage follower mechanism The feeding film dance arm of the film carriage rotating, and the proximity switch controls the start and stop of the film feed motor to achieve the follow-up of the film feed. Automatic feeding & cutting film device After the wrapping is compl…
