SMA Port High Isolation Transceiver Antenna

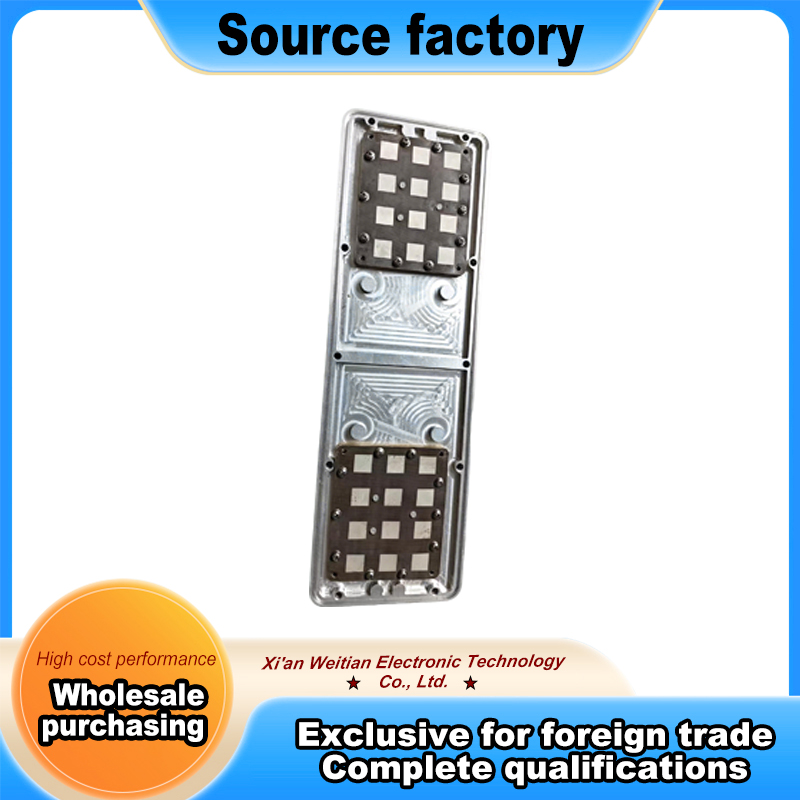

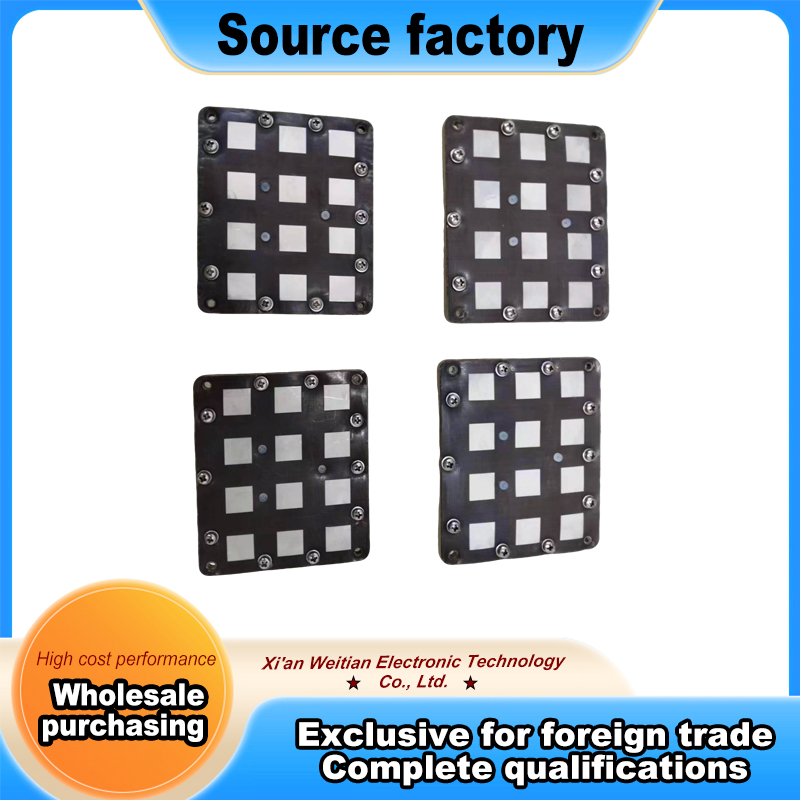

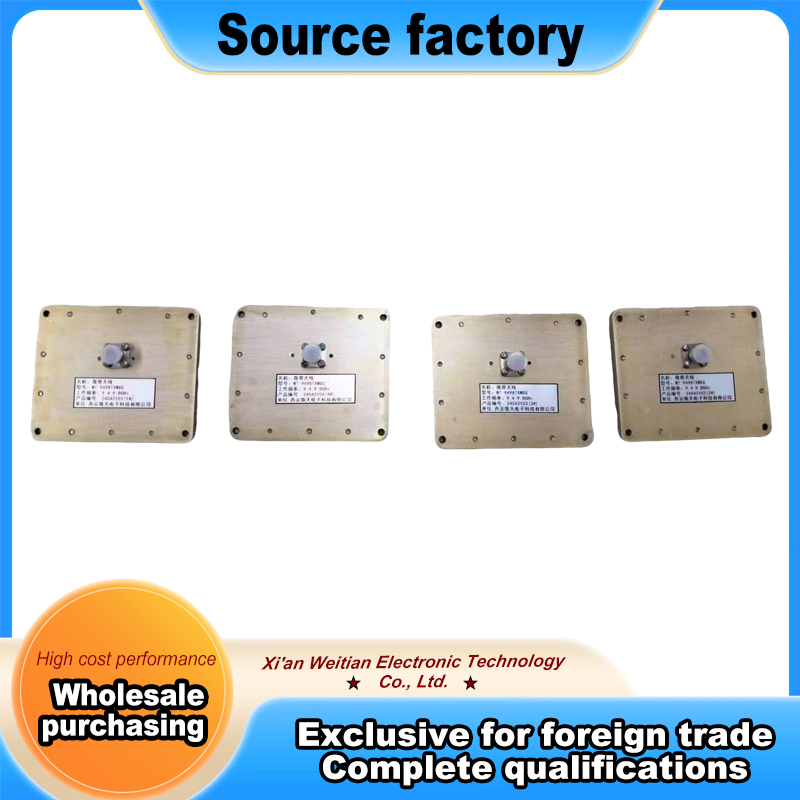

Microstrip Patch Antenna 9.4-9.8GHz for Missile Telemetry and Radar This product is a high performance Microstrip Antenna designed for X band applications requiring compact size and reliable performance. The antenna operates from 9.4GHz to 9.8GHz and is built using microstrip patch technology with an aluminum backing. As a Microstrip Patch Antenna, it features low profile, thin and lightweight construction. The planar structure supports conformal integration onto curved surfaces such as missile bodies and aircraft skins. The antenna can be configured as single patches or arrays, and supports multiple polarization options. Integration with RF circuits is straightforward. The design offers good vibration resistance and is suitable for batch printing and mass production. The antenna features an SMA K type connector for easy integration. This microstrip patch antenna delivers excellent electrical performance across its operating range from 9.4GHz to 9.8GHz. The Voltage Standing Wave Ratio…
