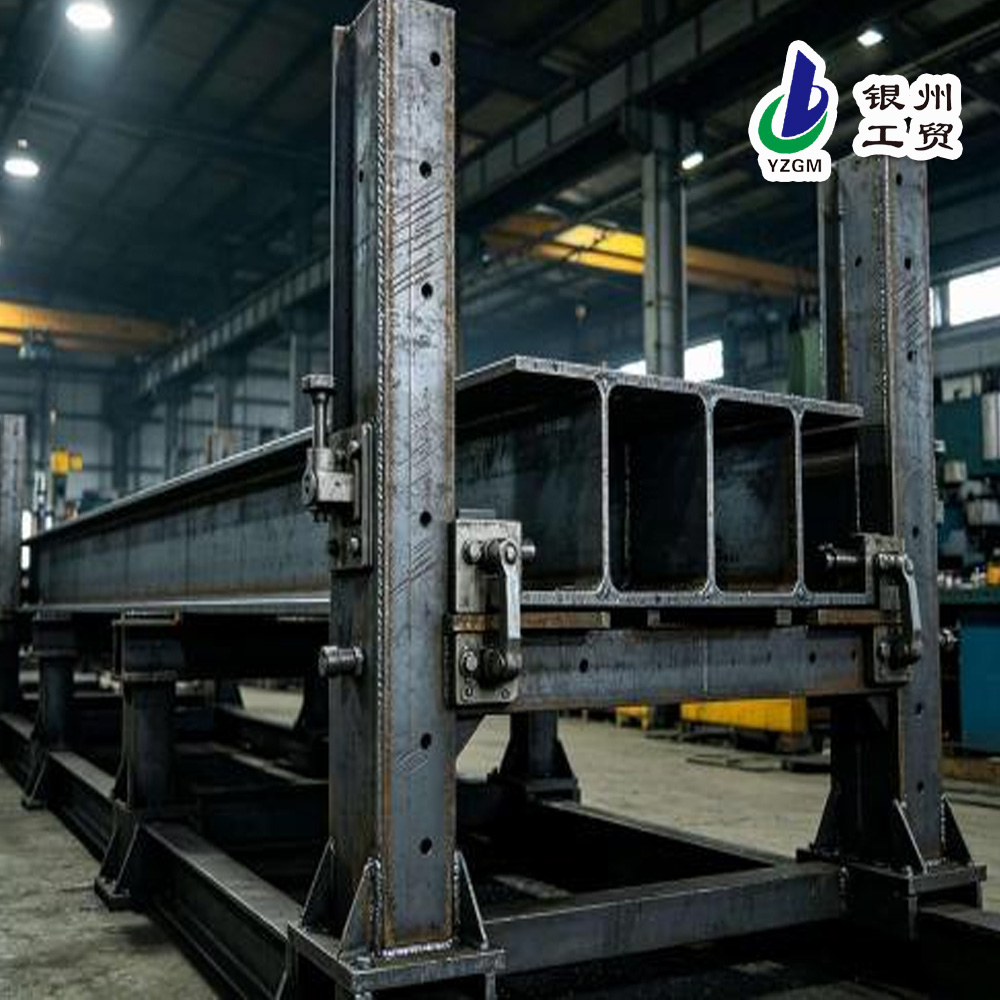

Steel Drill Fixture Frame

The custom-engineered machine tool fixture load-bearing steel frame, designed to integrate seamlessly with our factory’s patented high-speed drilling equipment, provides a precision-matched, rigid, and durable foundation for manufacturing operations requiring exacting positional accuracy, rapid cycle times, and long-term repeatability. This specialized steel framework is engineered through a collaborative design process that considers the specific dimensions, clamping force requirements, vibration frequencies, coolant flow, and chip evacuation needs of the machine tool and its associated workholding fixtures. The frame is fabricated from high-strength structural steel sections and heavy-duty plates, with all mounting interfaces precisely machined to ensure perfect alignment with the patented drilling equipment. Rigorous finite element analysis and static load testing confirm the frame’s structural integrity, vibration damping characteristics, and resistance to thermal deformation. To f…
