Gate Drive Transformer IGBT

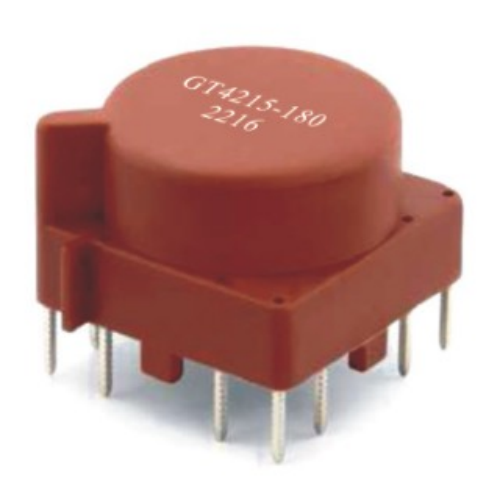

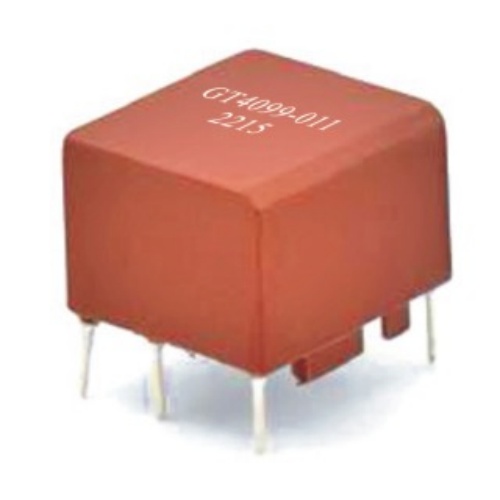

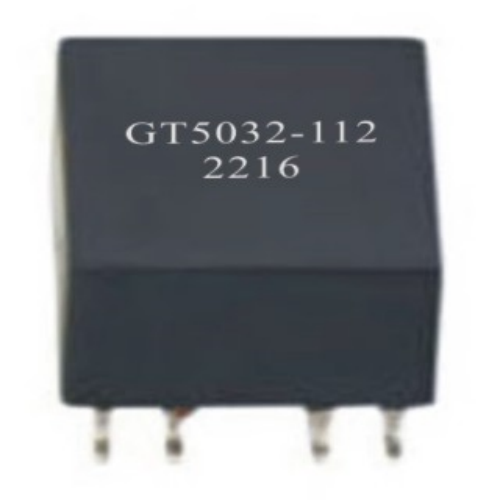

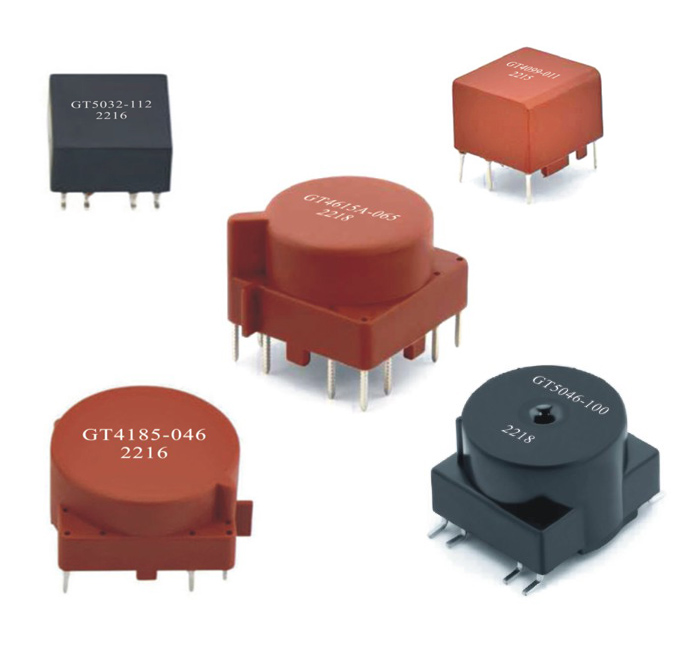

Optimized Product Detail Page: Gate Drive Transformer IGBT IntroductionGate Drive Transformers are critical components in variable-frequency drives (VFDs), enabling safe galvanic isolation between IGBT inverter stages and low-voltage control circuits. Engineered with nanocrystalline toroidal cores, our IGBT transformers deliver high switching power density in ultra-compact packages while minimizing PCB footprint. Featuring reinforced insulation (>5kVrms) and ultra-low coupling capacitance (<3pF), these Transformers ensure reliable switching at high dv/dt environments and support corona extinction voltages exceeding industry standards. Key Specifications Isolation Voltage: 500-1200V working range (reinforced per IEC 61800-5-1) Coupling Capacitance: <3pF (reduces EMI propagation) Corona Extinction Voltage: >2× operating voltage Temperature Range: -40℃ to +105℃ (operating/storage) Mounting Options: THT/SMT packages for high-density layouts Customization: Adjustabl…
