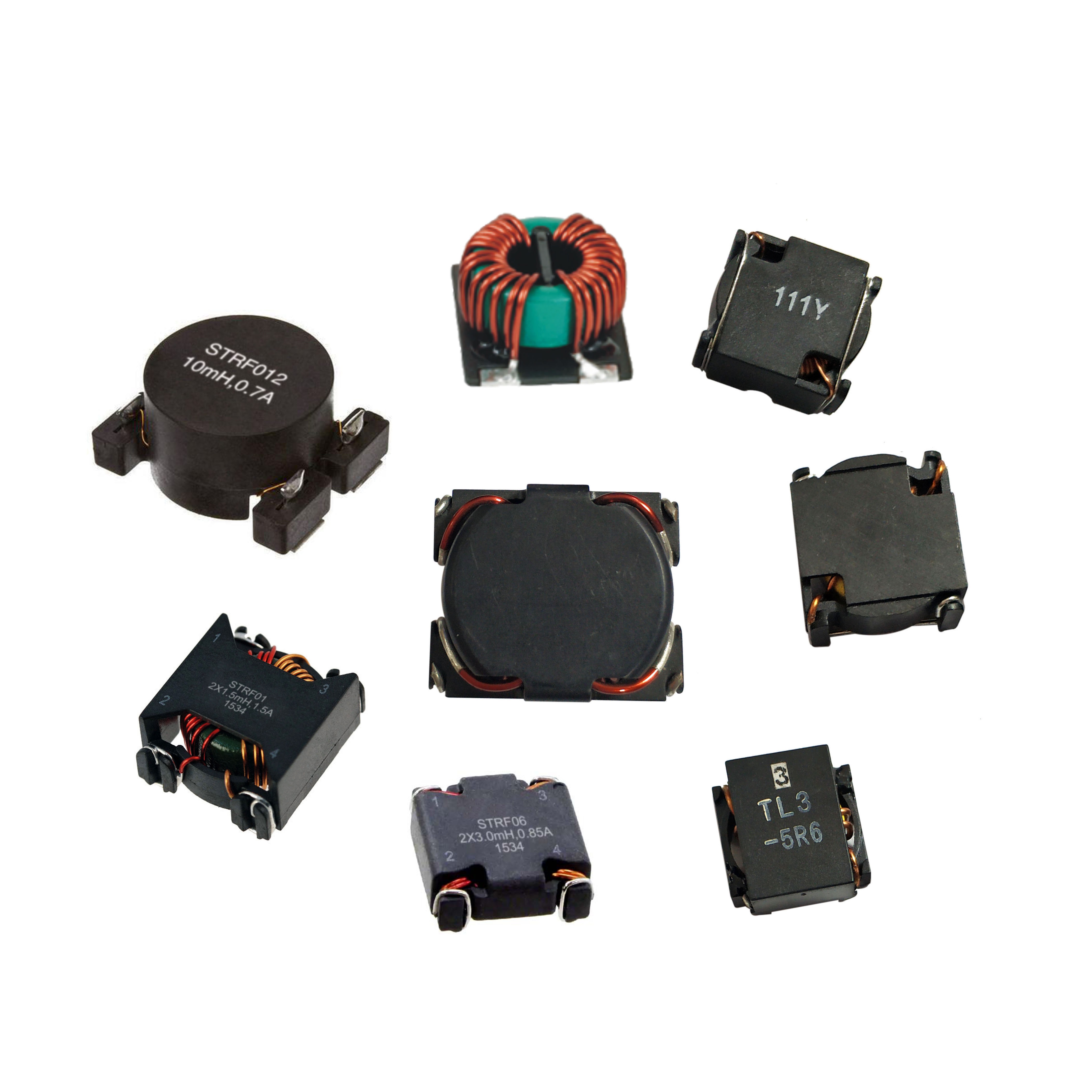

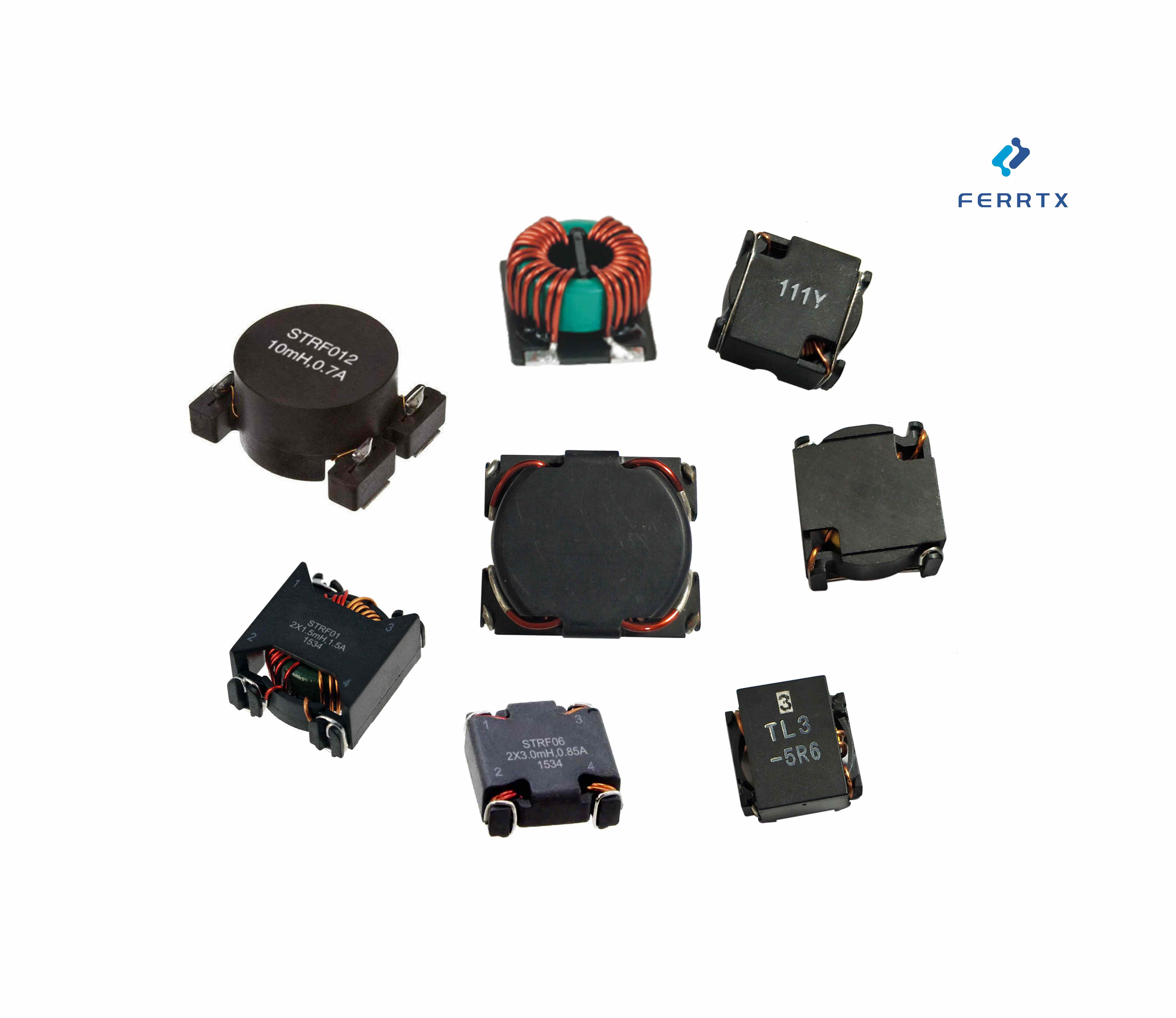

SMD Common Mode Chokes STRF

STRF Family SMT Common Mode Chokes  When Selecting SMD Common Mode Chokes.Prioritize components with optimized common-mode impedance curves.   Common Mode Choke Applications.The combined use of EMI filter circuits and  common mode chokes requires evaluation of differential mode impacts, especially in high-speed ports where signal integrity demands effective suppression. Features・Toroidal core optimized for EMI suppression・High mechanical strength・Excellent EMI performance・AC power line compatibility・Operating temperature: -40℃ to +125℃ (including self-temperature rise)・Storage temperature: -40℃ to +125℃ Applications・DC/DC converters・Network systems・Automotive ADAS & LCD TVs・PC peripheral noise suppression Series in this family Product Series L(µH) DCR(mΩ) IDC(A) STRF01 650-15000 50-600 1.0-3.6 STRF012 700-47000 30-2600 0.3-4.0 STRF04 225-1470 21-80 2.8-5.6 STRF06 880-6800 110-700 0.3-1.63 STRF07 600-10000 20-500 0.5-3 STRF16 135-820 3.5-15 7.0-26 STRF22…
