Four Layer Co-Extrusion Machine

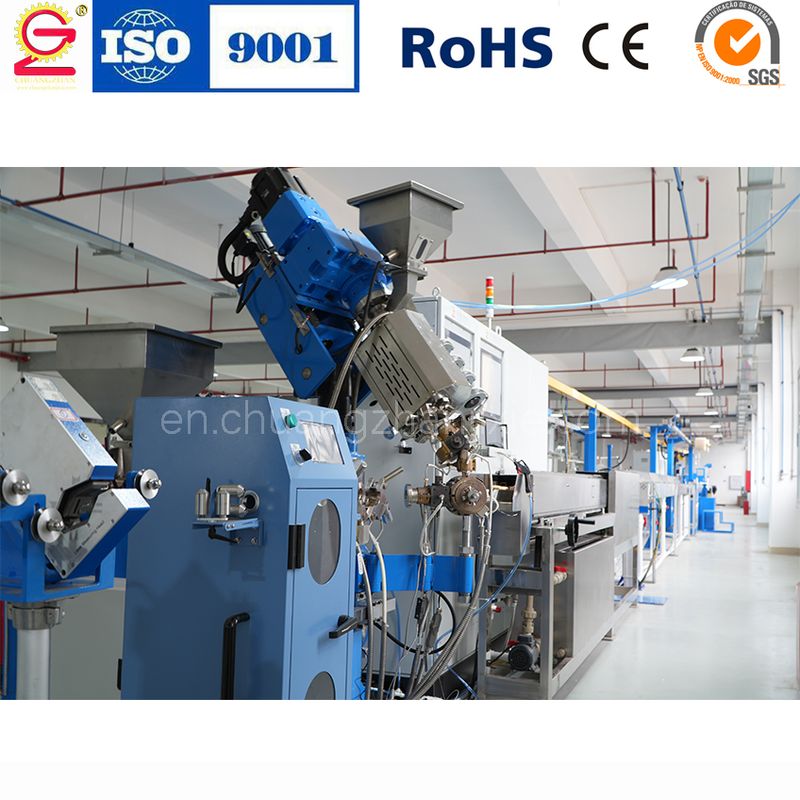

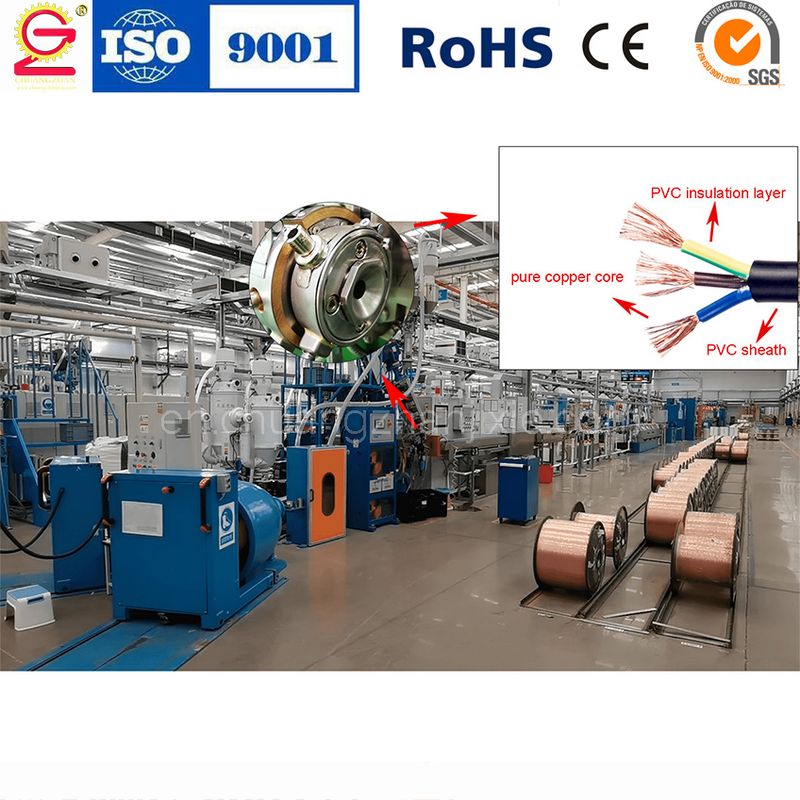

Four-Layer Co-Extrusion Machine   Four-Layer Extrusion Design for Complex Cable Structures   The Four-Layer Co-Extrusion Machine is developed for cable manufacturers who need to produce multi-layer cable structures with accurate layer control and stable output. By combining four extrusion processes into one production system, the equipment helps manufacturers create cables with different insulation, shielding, and protective layers while keeping the overall structure consistent. Parameter Detail Machine Name Multi-layer Co-extrusion Precision Extrusion Machine Conductor Area 0.3–8.0mm² fine copper / aluminum conductor Single Layer Thickness 0.05–0.50mm ultra-thin customizable extrusion Finished Outer Diameter 0.2mm–8.0mm precision micro wire Max Output 35KG/h total extrusion capacity Tractor Speed 0.5–1200m/min dynamically adjustable Extrusion Performance Multi-layer synchronous co-extrusion, high concentricity, no delamination Control System Independent multi-te…
