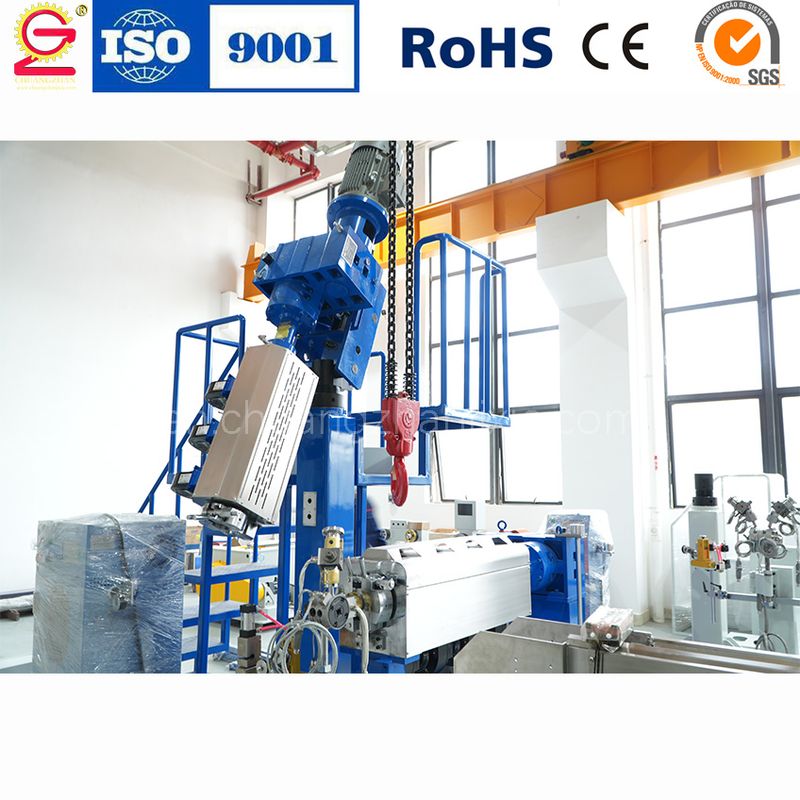

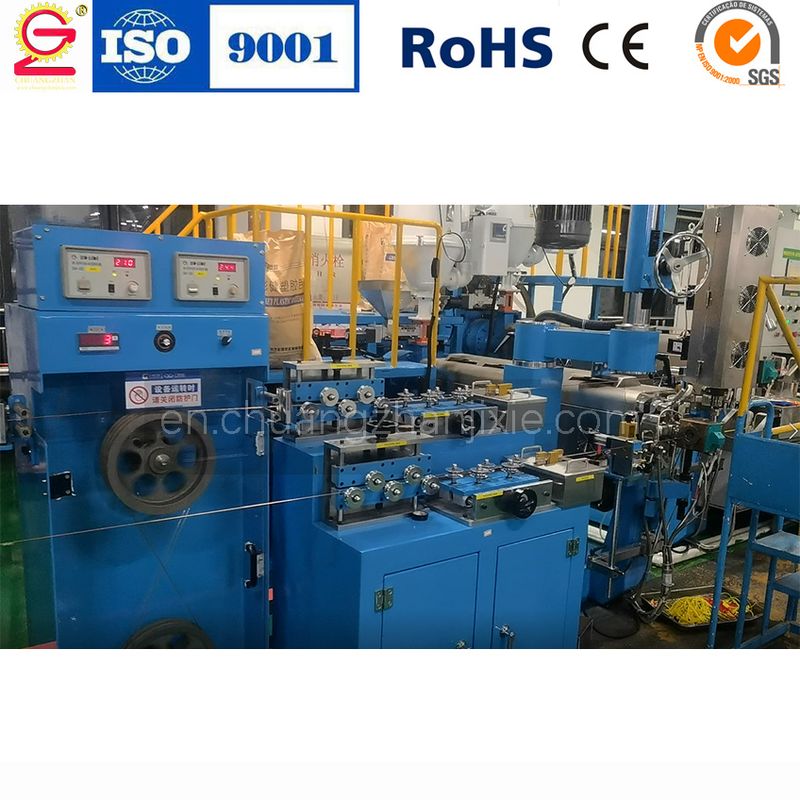

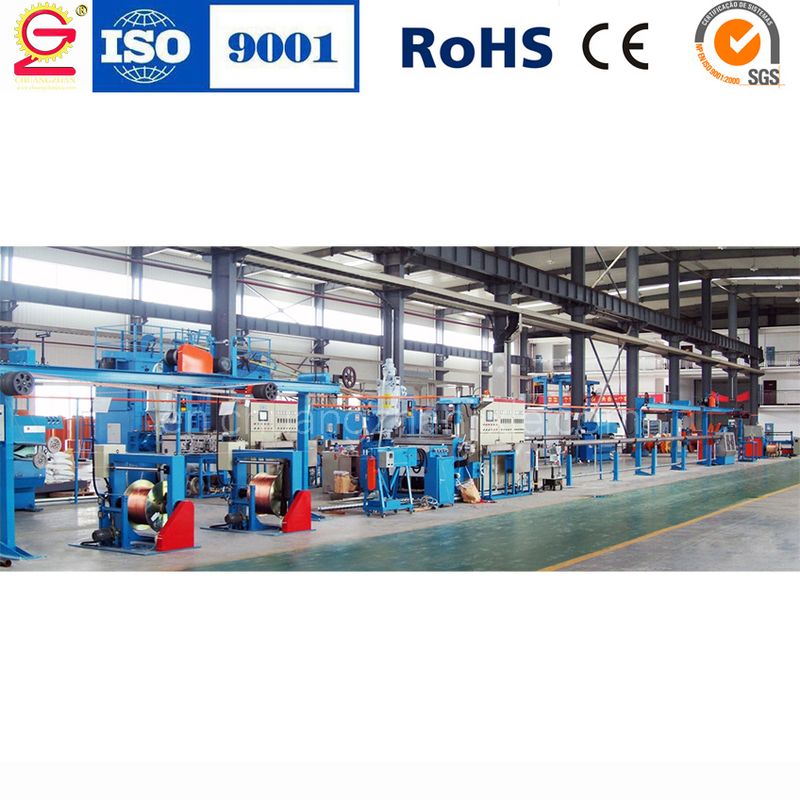

High Speed Power Cable Extrusion Machine

High Speed Power Cable Extrusion Machine   Built for High-Speed Power Cable Insulation and Sheath Production   The High Speed Power Cable Extrusion Machine is designed for cable manufacturers who need stable output and consistent quality during large-scale power cable production. It is suitable for producing low voltage cables, building wires, industrial cables and other cable products that require reliable insulation and protective layers. Model Input Wire Diameter Finished Wire Diameter RPM Line Speed (m/min) φ30 0.21–3.0mm 0.31–4.0mm - - φ35 1.1mm 1.3mm - 500 φ40 0.21–3.0mm 0.6–4.0mm 10–110 600 φ50 0.3–4.0mm 0.8–6.0mm 10–110 500 φ60 0.8–5.0mm 0.9–8.0mm 0–100 300 φ65 1.0–4.0mm 2.0–6.0mm 0–100 600 φ70 0.8–3.5mm 1.8–7.5mm 0–90 300–500 φ80 1.0–5.0mm 2.0–7.0mm 0–90 500 φ90 5.48–34mm 11.48–38mm 0–110 300 φ100 - Max 70mm 0–60 100 φ120 11.8–65mm 15.4–71.6mm 0–80 110 φ150 25–130mm 30–150mm 0–70 5–60 φ175 25–150mm 30–160mm 50 40 φ200 30–160mm 40–175mm - -…
